Zone and Marker Template

Zone and marker template control system allows a consistent display and fast creation

Template control system allows consistent display

The display of zones/markers that have the same template are consistent across all wells. When users modify template style such as color, line type and name, all zones/markers associated with the templates are automatically updated as well.

Easy to set up a correlation

On available multi-well logplot, i2G supports displaying zone set/marker set quickly by selecting them on properties editor window. This also makes switching between different zone set/marker set easier than ever.

Flexible in adding new zone/marker and/or modifying the current ones

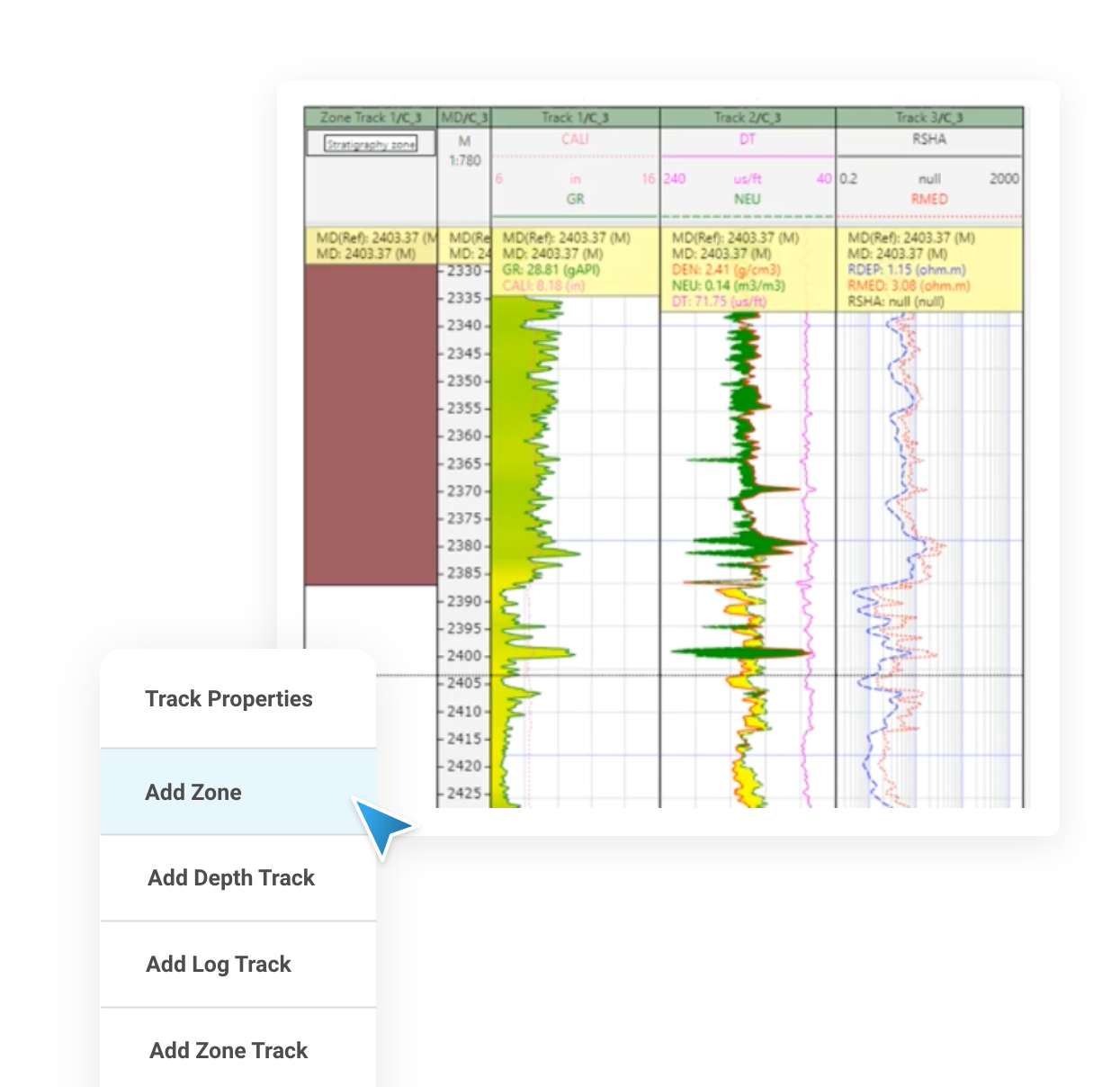

New zone/marker can be simply added interactively on the logplot or by assigning the top and bottom depths for the zone. I2G offers the ability to split a zone into different smaller zones and assigned other pre-defined templates.
